Official brochure from Modenas. You can expect to get this brochure at bike shop near you soon.

At the back of the brochure page, there is a detailed technical specification that includes it performance rating. It is at 7.3kW/8500RPM and 9.1Nm/4000RPM. Check out the inlay and back cover after the jump  (more…)


Engine
Type 4 stroke, SOHC, 1 cyclinder
Bore X Stroke 55.0 x 50.6 mm
Displacement 120 cc
Compression Ratio 9.8
Carburetor SPACO AV20
Ignition System Magneto – CDI
Starting System Electric Starter
Cooling System Air Cooled
Fuel Tank Capacity 5.3 litre
Fuel Consumption 46.1 km/litre @ 80km/hour

Transmission
Type 4-speed rotary
Clutch Centrifugal and wet mutiple disc
Primary Reduction Ratio 3.048 (64/21)
Final Reduction Ratio 2.786 (39/14)
Driving System Chain

Chassis
Type Square Pipe Backbone
Front Suspension Telescopic Fork
Rear Suspension Trailing Swing
Front Brake Disc (220 mm) with two-piston caliper
Rear Brake Drum (110 mm)

Electrical System
Battery 12 V 5 Ah

Modenas Ace 115 price is RM4,598 (dual starter)

All pictures are from official Modenas press kit. Click on the image to EMBIGGEN!


Enjoy the pictures. Click to EMBIGGEN!

20120301-023052 PTG.jpg

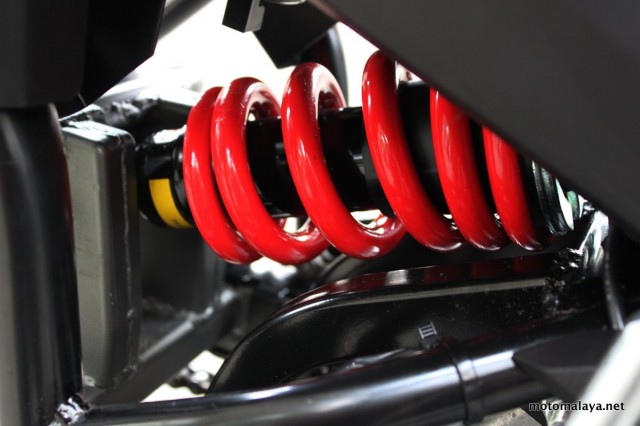

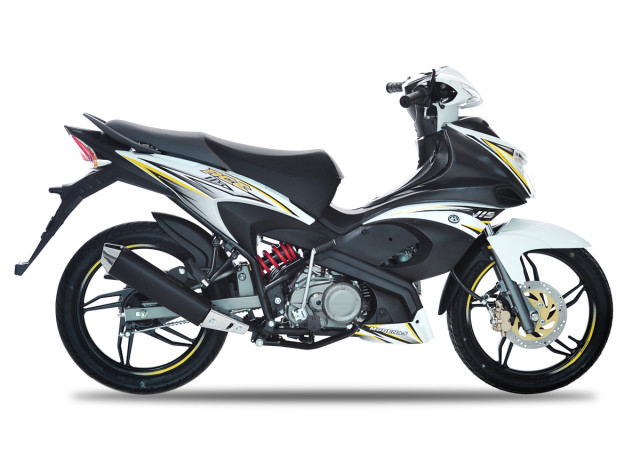

Modenas has launched all new bike for 2012. The name of the bike is Modenas Ace 115. It got 120cc Kawasaki tech engine, rear monoshock with two-piston caliper for the front brake.  (more…)

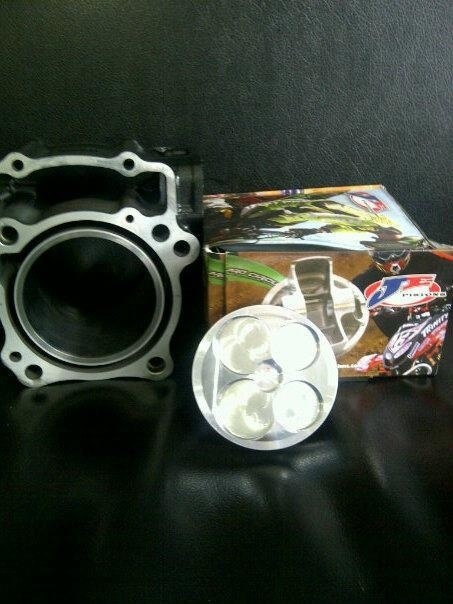

20120301-081751 PG.jpg

83mm x 55mm = 297.62cc. Easy upgrade for your CBR250R. Compression ratio will also be increased by using this block. Now, you can call your bike CBR300R. (more…)

20120229-093532 PG.jpg

The most awaited plate number by many KLites will be open for booking on 30th April 2012. WWW might refers to ‘world wide web’ as one might suggest. I like this too because my name starts with W.

Via: Utusan Malaysia
